ALMR400

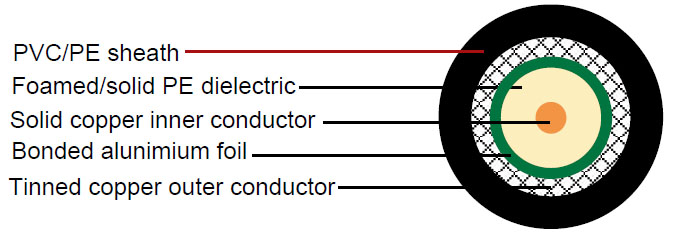

Construction :

  • Inner conductor Solid copper Φ2.74 mm
    Dielectric Foam /Solid PE Φ7.24 mm
    Shield Bonded aluminium foil Φ7.39 mm
    Outer conductor Tinned copper braid Φ8.13 mm
    Sheath PVC/PE Φ10.29 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 101.1 pF/m
    Velocity of propagation 85%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 2.92 Ohm/Km
    Outer conductor resistance 5.41 Ohm/Km
    Operating temperature range -40°C - +85 °C
    Min.bending radius 51mm

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    30 2.2 0.7
    50 2.9 0.9
    150 5.0 1.5
    220 6.1 1.9
    450 8.9 2.7
    900 12.8 3.9
    1500 16.8 5.1
    1800 18.6 5.7
    2000 19.6 6.0
    2500 22.2 6.8
    3000 24.8 7.6
    5800 35.5 10.8
